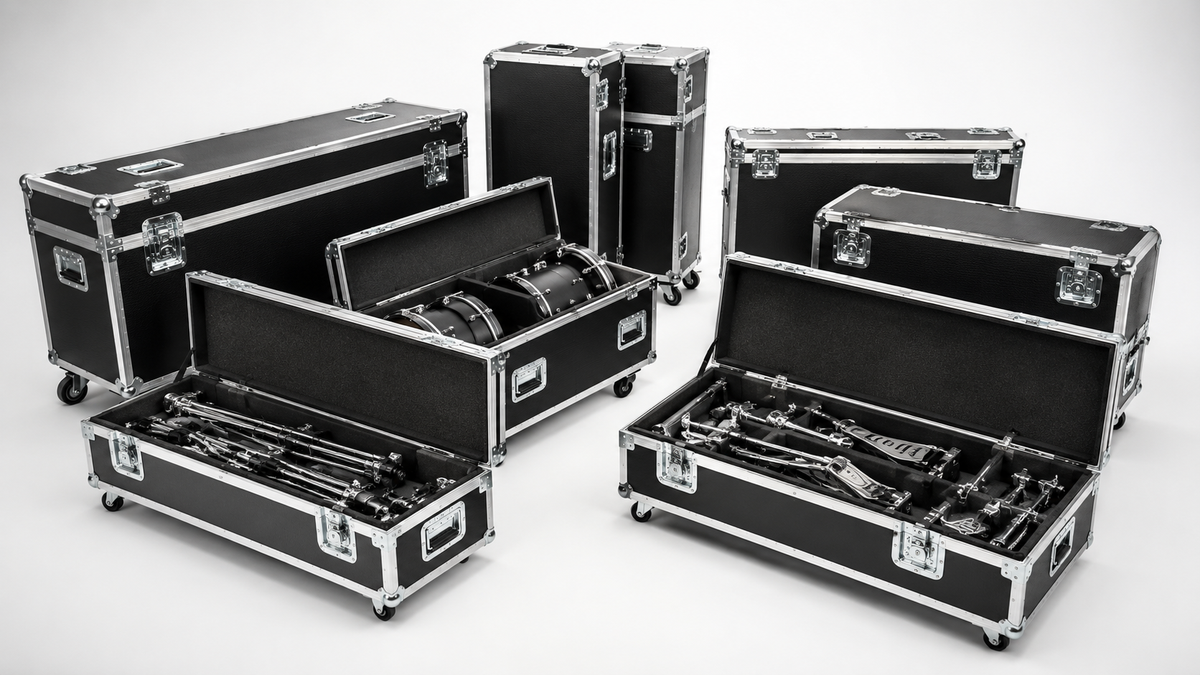

How Touring Drummers Pick Drum Hardware Cases That Last

Cymbal stands, the hi-hat, the double pedal, tom mounts, a hardware rack, a throne. None of it makes a sound on its own, and all of it is dense steel that shifts, pokes, and punches through a weak box. The case that holds your shells gets babied. The hardware case gets thrown, stacked, and dragged up a ramp. This guide breaks down what actually makes a hardware case survive a tour and how to match the build to your load.

What counts as drum hardware (and why it wrecks cases)

Hardware is the metal. Cymbal stands, snare stand, hi-hat stand, boom arms, tom mounts and L-arms, the bass drum pedal or double pedal, clamps, memory locks, the throne, and on bigger rigs, a full hardware rack with bars and clamps. It is by far the densest part of the kit. A single cymbal stand can weigh six to eight pounds, and a touring drummer travels with five or six of them plus everything else.

Two things make hardware brutal on a case. First is sheer weight: a loaded hardware case is usually the heaviest box on the cart, often 80 to 120 pounds, and that mass slams the walls every time the truck brakes. Second is point loading. A tripod leg, a wing bolt, or a pedal cam concentrates all that force onto one small spot instead of spreading it out. Shells press flat against foam. Hardware stabs. That is why a case that protects a snare fine will split at the seam after a month of hauling stands.

Why hardware cases fail on the road

Failures are predictable once you have watched enough load-ins. The walls delaminate when thin plywood flexes under weight until the glue lines separate. Latches pop open mid-transit because a surface-mounted latch catches on a truck wall or a doorframe and springs. Corners shear off when the case gets dropped on an edge, and there is no ball corner to take the hit. And casters are the quiet killer: an undersized or under-rated wheel seizes, flat-spots, or snaps its rivets, and now you are dragging 100 pounds across asphalt.

Every one of these traces back to a build decision. A case that lasts is not lucky. It is specified. That is the whole reason serious touring gear is described by its construction rather than its looks, and why a real case warranty tells you something about how the case is put together.

ATA-300 construction: what makes a drum hardware case last

ATA-300 is the Air Transport Association spec that defines a road case rated for repeated air and ground freight. Category I, the level most touring drum hardware cases target, is built to survive 100 round trips through commercial handling. That number matters because handling is where cases die, not performance. When a case is described as ATA-300, you should be able to point to the features that earn the rating:

• Rigid plywood walls, usually laminated with an ABS or PVC face, are not hollow or foam-core panels.
• An aluminum extrusion frame that locks the lid to the base around the full perimeter and gives the latches and corners something solid to bite into.
• Recessed spring-loaded latches (butterfly or draw style) that sit flush so nothing can snag and pop them open.
• Ball corners at every junction so the case can be dropped or stacked on a corner without splitting.
• Riveted hardware, not screwed or glued, so the latches and handles stay attached after thousands of pulls.

If a case is missing two or three of those, it is a storage box wearing road-case clothing. For hardware specifically, all five matter, because the contents fight the case from the inside the entire trip.

Plywood gauge: 1/4 inch vs 3/8 inch

Ply thickness is the single biggest lever on how long a case lasts, and the one most people underspec to save weight or money. Two gauges dominate:

1/4 inch (roughly 7mm), medium duty. Lighter and cheaper. Fine for lighter contents, for fly dates where every pound counts, and for gear that does not stab the walls. For cymbals in a dedicated case or a light accessory load, it can be the right call.

3/8 inch (roughly 9mm), heavy duty. This is the touring standard for drum hardware. The extra ply resists the point loading from stand legs and pedals, holds rivets tighter, and shrugs off the stacking and dropping that hardware cases live through. A 3/8 ply heavy-duty drum hardware and stand case is heavier empty, but it is the gauge that survives a full tour cycle without the walls giving up.

The honest tradeoff: 3/8 ply adds real weight you have to push and lift. If your hardware load is genuinely light and you fly a lot, 1/4 inch can be the smarter pick. If you run a heavy rig and travel by truck or trailer, do not talk yourself out of the thicker wall to save a few pounds. The case is the cheapest insurance on the cart.

Casters, latches, and corners

A hardware case rolls more than it gets carried, so the wheels deserve as much attention as the walls. Look for 4-inch casters rather than 3-inch casters for any case that will run loaded; the larger wheels roll over cable ramps, door tracks, and gravel without stalling. Check the load rating per caster and make sure the set total clears your loaded weight with a margin. In heavier cases, locking casters on at least two corners keeps the box from rolling off a raked stage or a truck liftgate.

Latches should be recessed and spring-loaded so they cannot be knocked open. Spring-loaded butterfly latches stay shut under vibration, which matters when the case is buried under other boxes in a moving trailer. Handles should be spring-loaded and recessed for the same reason, and there should be enough of them that two people can lift the loaded case without fighting for a grip. Ball corners finish the picture: they let cases stack flat and take the corner hits that would otherwise crack a flat-cornered box.

Sizing a case to your hardware load

Buy by interior dimensions, not by the outside of the box. Lay out everything that goes in the case: every stand collapsed, both pedals, the throne, clamps, and any rack bars. Measure the longest piece, usually a fully collapsed boom stand or a rack bar, because that sets your minimum interior length. Then estimate the loaded weight so you can size the casters and decide on ply.

Resist the urge to cram everything into one giant case. A box you cannot close flat strains the latches and frame every trip, and a single 120-pound case is a two-person lift that nobody on the crew enjoys. Two right-sized cases often beat one oversized one. Tall vertical cases handle long stands cleanly and roll on end, while a wider jumbo trap case for drum equipment swallows pedals, the throne, and a pile of clamps with room to spare. If your kit also travels with poles, mic stands, or backdrop hardware, a dedicated stand and tripod case keeps the long stuff separate from the heavy stuff.

Trap cases vs stand cases vs combo cases

Three formats cover almost every drum hardware load. The right one depends on what you are hauling and how you load in.

Many touring drummers run two of these together: a stand case for the long hardware and a trap case for the pedals and odds and ends. If you are building out a full kit transport setup, it is worth seeing how the hardware cases sit alongside the rest of the musical instrument and gear cases so the whole rig moves as one system. Drummers who also carry their own mics and audio accessories can keep those protected in dedicated microphone and accessory cases rather than burying them loose in a trap box.

When to go custom

A stock case fits most working drummers, and there is no reason to overbuy when a standard size covers the load. But hardware setups vary more than shell packs do, and that is where a built-to-spec case earns its keep. Go custom when your load is genuinely odd: a double-kick rig with extra pedals, a large hardware rack that does not collapse short, an electronic kit with module racks and a trigger setup, or a backline company that wants matching cases in one footprint across a fleet.

Custom also makes sense when you want a specific interior: foam-lined dividers cut to your exact stands, a tray for pedals over a lower compartment for clamps, or wheels and handles positioned for how your crew actually loads the truck. Because the case is built to your measurements, nothing rattles and nothing wastes space. For a touring drummer chasing a case that genuinely lasts, getting the interior right is often the difference between a box that survives and one that protects.

FAQ

What is the best ply thickness for a drum hardware case?

For touring, 3/8 inch (about 9mm) plywood is the standard. It resists the point loading from stand legs and pedals, holds rivets tighter, and survives repeated stacking and dropping. Lighter 1/4 inch ply works for light accessory loads or fly dates where weight is critical, but a heavy hardware load on a truck should run 3/8 inch.

How heavy is a loaded drum hardware case?

A full hardware case usually lands between 80 and 120 pounds loaded, depending on stand count and ply. That weight is why caster size and rating matter so much, and why splitting a big load across two right-sized cases often beats one oversized box that needs two people to lift.

What size casters should a hardware case have?

Use 4-inch casters over 3-inch for any case that travels loaded. The larger wheel rolls over cable ramps, door tracks, and rough ground without stalling. Check the per-caster load rating so the set clears your loaded weight with margin, and add locking casters on heavier cases to keep them from rolling on raked stages or liftgates.

Do I need a separate case for cymbals and stands?

Usually yes. Cymbals need a flat, padded case so the edges do not get nicked, while stands and hardware need a rugged box that can take point loads. Mixing them risks a standing leg gouging a cymbal. Many drummers run a dedicated stand case plus a trap case for pedals and accessories.

Is an ATA case worth it for a working drummer?

If your gear travels regularly, yes. An ATA-300 case is built for roughly 100 round trips of commercial handling, with riveted hardware, recessed latches, and ball corners that ordinary trunks lack. The case costs less than replacing damaged stands and pedals, and it protects your gear through the load-ins where most damage happens.

When should I order a custom drum hardware case?

Order custom when your load is unusual: a double-kick rig, a large non-collapsing rack, an electronic kit with module racks, or a fleet that needs matching cases. Custom also lets you specify foam dividers, trays, and wheel placement built to your exact gear, so nothing rattles and no space is wasted.
