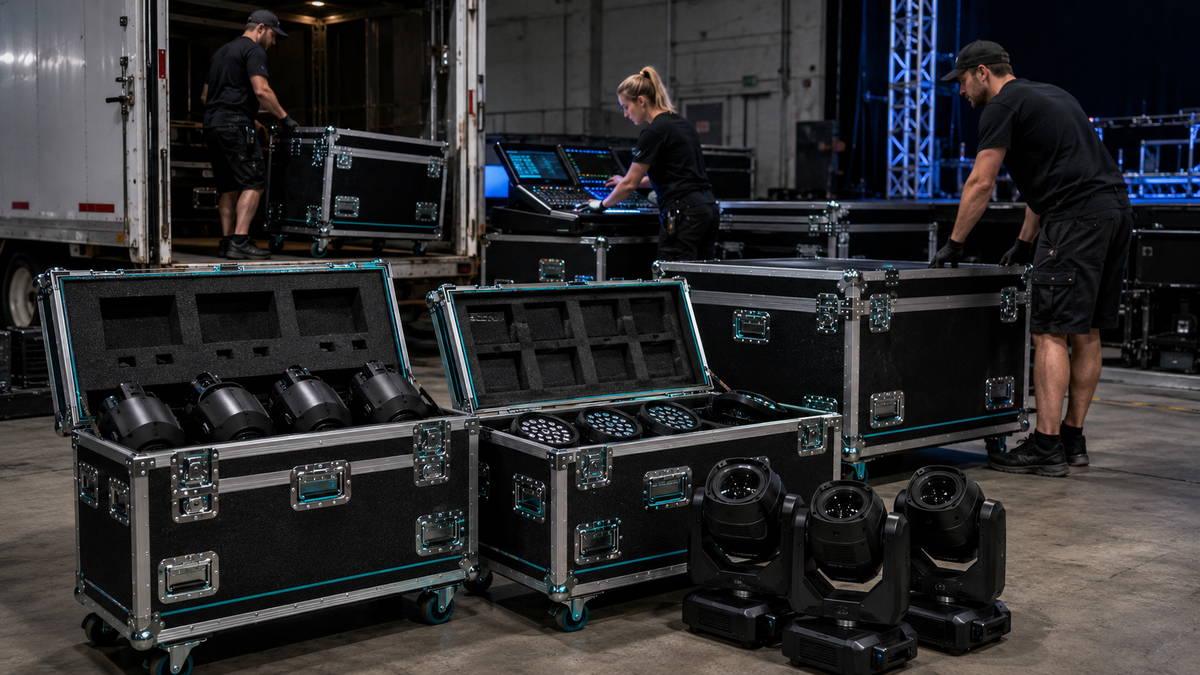

Lighting ATA Cases: How Touring Crews Pick the Right Build

Lighting gear takes more abuse than almost anything else on a tour. Fixtures get stacked in a hot trailer, rolled over cable ramps, dropped onto a dock, and flown to the next city before the gel has cooled. The right lighting ATA case is what stands between a working rig and a cracked lens or a sheared yoke. This guide walks through how seasoned crews actually choose a build, fixture by fixture.

What makes a lighting ATA case different

A lighting ATA case is not just a padded box. It is built to the ATA-300 Category I specification, the airline transport standard that defines how a case has to survive repeated freight handling without failing. That means a rigid laminated plywood shell, recessed hardware that will not catch and tear, and corners that hold up when the case lands on one.

Lighting adds problems most other cases never deal with. Fixtures run hot, so they need ventilation or a cool-down window before they go in foam. Moving heads carry delicate optics and motorized yokes that hate vibration. PAR cans and conventionals have protruding lenses and barn doors that snap if the interior is not cut to hold them. And almost everything in the lighting world has a cable tail, a clamp, or a safety that has to travel with it. A case built for a flat panel will not solve any of that. The interior has to be designed around the fixture, not the other way around.

Match the case to the fixture

The single biggest decision is fixture type. Each one wants a different interior, a different orientation, and sometimes a different duty level. Here is how crews break it down.

PAR cans and LED PARs

PARs travel in multiples, so the smart move is a multi-unit case with removable dividers. A PAR LED 8-in-1 ATA case sized for PAR 64 fixtures carries a full set in one rolling unit and keeps each can isolated so lenses do not knock together. If your rig mixes PAR 38, 46, and 56 bodies, a PAR case with six removable dividers in three sizes lets one case flex across the inventory instead of buying a separate box for every size.

Conventionals and ellipsoidals

Lekos and other ellipsoidals are long, awkward, and front-heavy. They need a case with compartments cut to the body length, room for the barrel, and a spot for the shutters and gel frame. A heavy-duty Leko light case with custom compartments holds several units upright and keeps the lens trains from shifting in transit. This is the fixture category where a generic interior fails most often, because the weight balance is wrong and the optics ride loose.

Moving heads and washes

Movers are the most valuable and the most fragile fixtures on most rigs. They want a heavier-duty shell, dense foam cut to the exact body, and often a dual or quad configuration so a tech can pull two or four at once on load-in. Because moving head models vary so much, this is usually where a built-to-spec interior earns its cost. Foam cut to your specific fixture stops the head and the motorized yoke from working loose over a hundred shows.

Consoles, dimmers, and controllers

Control gear lives in a different world. Lighting desks want a recessed top panel and a lid deep enough to clear faders and encoders, while dimmer packs and DMX hardware usually ride in rack format. If your control package shares a truck with audio and video racks, it is worth looking at the broader audio and video ATA case range so the whole control world standardizes on one format.

Construction that survives the tour

Once the format is right, the build quality decides how many tours the case lasts. The parts that matter most are the panel, the hardware, and the corners.

Plywood gauge. Lighting cases generally use 3/8-inch laminated plywood for heavy-duty touring builds and 1/4-inch for lighter loads or fixtures that do not get flown. The thicker panel adds weight but takes the repeated impacts that lighting trucks deliver. For movers and anything that flies, 3/8-inch is the default.

Latches and handles. Recessed butterfly latches and spring-loaded handles sit flush with the panel so nothing snags during a load-in or shears off in a stack. Surface-mounted hardware is the first thing to fail on a busy tour.

Corners and edges. Steel ball corners and aluminum edge extrusion take the hit when a case is dropped on an angle, which is exactly how cases land off a truck. They also let cases stack and interlock cleanly. Gravix backs its construction with a warranty you can read in full on the Gravix warranty policy, which matters when a case is meant to outlast several touring cycles.

Foam and interior protection

Foam is where a lighting case is won or lost. The shell stops the world from getting in. The foam stops the fixture from moving once it is inside. Three approaches cover most lighting needs.

Convoluted (egg-crate) foam in the lid is the standard top layer. It flexes to hold the fixture down and absorbs shock without adding much weight. Good for PARs, conventionals, and anything that sits in a tray.

Layered foam with cut pockets works for fixtures with a consistent footprint. You stack flat layers and cut the cavities to drop the fixture into. It is cost-effective and easy to repair on the road.

CNC-cut custom foam is the move for movers and high-value optics. The cavity matches the exact body, so the fixture cannot shift, rotate, or bottom out under vibration. It costs more and adds a little weight, but for a fixture that costs as much as a used car, the math is easy. One detail crews learn the hard way: leave a cool-down margin and do not seal a hot fixture into tight foam, because trapped heat shortens lamp and LED life.

Standard cases vs custom builds

Not every fixture needs a custom case, and not every fixture is safe in a stock one. The honest answer is that it depends on the fixture, the budget, and how far it travels. Here is how the tradeoff usually shakes out.

If your fixtures are common and your travel is regional, a stock lighting case will serve you well. The moment you are protecting a unique fixture, an odd footprint, or a rig that flies, building to spec stops being a luxury and becomes the cheaper option over the life of the gear.

Weight, casters, and load-in reality

A case has to survive the truck, but it also has to move fast on a tight load-in. That is a balance between protection and rollability. Heavier plywood protects better and weighs more, so you spec the duty level to the fixture value, not to a habit of always going heaviest.

Casters matter more than most buyers expect. For a loaded lighting case, 4-inch casters clear cable ramps and door thresholds that 3-inch wheels catch on, and at least two should lock so a stacked case does not roll off a raked stage. On rolling cases that carry stands and rigging hardware alongside the fixtures, it is worth pairing them with dedicated stand and tripod ATA cases so the long, awkward items travel in a case shaped for them instead of riding loose on top of the fixtures.

For a fuller breakdown of how cases, casters, and duty levels fit into a touring workflow, our complete guide to ATA road cases for touring productions covers the whole package, not just lighting.

Building a matched case fleet

Smart touring operations do not buy cases one at a time. They standardize. A matched fleet, where every case shares the same hardware, color, and stacking footprint, makes load-in faster, makes inventory obvious at a glance, and makes replacements simple because every case in the rig comes from the same build spec.

Standardizing also pays off on the truck. Cases that stack and interlock to a common footprint pack tighter and shift less in transit, which protects both the gear and the cases themselves. When you are speccing a fleet, decide on your duty levels and dimensions up front, then build the whole package to that standard rather than mixing brands and sizes show by show.

Frequently asked questions

What is a lighting ATA case?

A lighting ATA case is a road case built to the ATA-300 transport standard to protect stage lighting gear, including moving heads, PAR cans, conventionals, and control consoles. It uses a laminated plywood shell, recessed hardware, ball corners, and a foam interior cut to the fixtures so the gear survives repeated freight handling and load-ins.

Do I need a custom case for my moving heads?

Usually yes. Moving heads vary widely in body shape and carry motorized yokes and delicate optics, so a model-specific foam cavity is the safest interior. Stock cases work well for common PARs and conventionals, but for high-value movers, a build-to-spec case with CNC-cut foam prevents the fixture from shifting under vibration over a long tour.

What plywood thickness should a touring lighting case use?

For heavy-duty touring and anything that flies, 3/8-inch laminated plywood is the standard. It takes repeated impacts without flexing. Lighter 1/4-inch plywood suits fixtures that travel regionally and are not flown, where saving weight matters more than maximum impact resistance.

How many PAR cans fit in one ATA case?

Multi-unit PAR cases commonly carry eight fixtures in an 8-in-1 layout, with removable dividers that isolate each can. The exact count depends on the PAR body size, so a divided case rated for PAR 64 holds fewer larger bodies than one configured for smaller PAR 38 or 46 fixtures.

Can a lighting case be branded for my touring company?

Yes. Custom builds can carry your colors, logo, and matched panels so the whole fleet looks consistent on the truck and at the venue. Private-label and bulk options make it practical to brand an entire lighting package rather than a single case.
