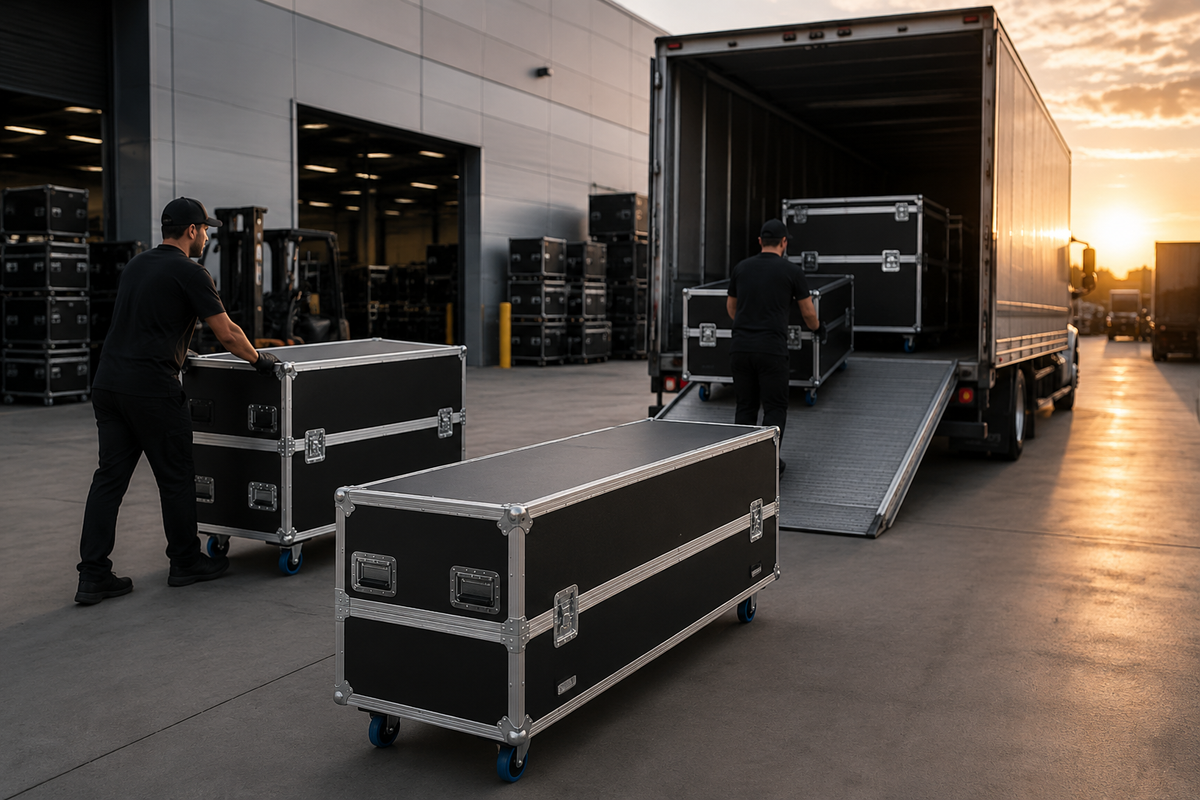

How AV Integrators Ship Multi-Display Installs Cross-Country

A six-screen video wall that ships flawlessly and a six-screen wall that arrives with two cracked bezels look identical on the loading dock. The difference is upstream, in how each panel was packed for the lane. For integrators running installs across state lines, flat screen shipping cases are the part of the job nobody sees and everybody depends on. Get the cases right and the truck becomes a non-event. Get them wrong and you are sourcing a replacement display in a city you have never worked in, on the day of the install.

What cross-country shipping actually demands

A local job is forgiving. You hand-carry the panel from the van to the lobby, and the worst it sees is a curb. A cross-country install is a different animal. The case rides a truck for two or three days, gets stacked under other freight, handled by people who have never seen it, and dropped from a liftgate at the far end. Vibration is constant. Temperature swings from a cold dock to a hot trailer and back. Forklift forks find corners. Nothing about that environment cares that there is a 60 inch OLED inside.

That is what the ATA-300 spec was written for. It is the Air Transport Association standard for cases that have to survive repeated commercial transit, and it is the baseline integrators should hold their display cases to. An ATA-rated case is not just a padded box. It is built to take the shocks, the stacking loads, and the rough handling of freight without passing any of it to the gear inside. For glass panels, which fail at the bezel and the surface long before the chassis gives out, that margin is the whole point.

Why hard cases beat blankets and cardboard

Plenty of integrators have shipped a display in its factory carton or wrapped in moving blankets and gotten away with it. The problem is that "got away with it" is not a packing method, it is a coin flip. The factory box is engineered for one trip from the warehouse to a retail shelf, palletized and never restacked. It is not built for a panel that will travel to three cities this quarter. Blankets stop scuffs and do nothing against a point load or a drop.

A proper ATA case changes the failure math. The shell is laminated plywood with ABS or PVC skin, riveted to extruded aluminum edge framing, with steel ball corners that take the brunt of a drop and recessed latches that cannot snag or pop on a conveyor. Inside, the panel sits in foam cut to its outline so it cannot shift, rattle, or load against its own bezel. Gravix builds to ATA-300 and backs the construction with a lifetime warranty on the case, which tells you the build is meant to outlast the displays it carries. For a fuller breakdown of how case construction maps to display size, the 32 to 80 inch sizing guide walks through every class.

Sizing flat screen shipping cases to the install

Screen size is the headline number, but it is not the spec. A 55 inch panel from one maker can be an inch wider and a pound heavier than a 55 inch from another, and the bezel-to-edge geometry differs. When you size flat screen shipping cases, work from the actual panel dimensions and weight, not the marketing diagonal. The foam cavity has to hug the screen on all four sides with enough depth to suspend it off the floor and lid of the case, so the only thing touching the glass is foam.

A few sizing rules that save jobs:

• Measure the real panel. Width, height, depth, and weight, including any non-removable feet or a mounted media player on the back.
• Leave foam, not air. A loose panel in an oversized case is worse than no case. The screen needs a snug foam channel, not slack.
• Plan for the fleet, not one model. If your installs cycle through a couple of panel sizes, an adjustable or telescoping-lid case earns its keep.

Gravix breaks its catalog into size bands so you can match a case to the install fast: medium screens 42 to 50 inch, large 51 to 60, and on up through oversized 71 to 80 inch for the big lobby walls. For mixed-size jobs, an adjustable model like the heavy-duty 32 to 55 inch adjustable case covers a wide span without buying a case per size.

Single, multi-screen, and power-lift builds

Not every display ships the same way. A single-screen case is the workhorse for one panel per case. A 2-in-1 or multi-screen case carries two displays in one shell with a divider, which cuts your case count and load-out time when an install is built from matched panels. And for the heaviest screens, a power-lift case puts the panel on a motorized platform so a two-person crew is not deadlifting an 80 inch display out of a case at chest height. Here is how the three compare for a cross-country job:

For video-wall work where the panels match, a 2-screen adjustable case halves your case count and keeps a wall's panels traveling together. For the heaviest single displays, the lift build is the one that protects your crew's backs as much as the glass.

Foam, latches, and casters that survive the lane

The shell keeps the case intact. The hardware keeps the case usable trip after trip. On a cross-country lane, these are the details that separate a case that lasts five years from one that needs a latch replaced after the third job.

Foam

Foam type matters more than foam quantity. Convoluted (egg-crate) foam in the lid distributes pressure across the screen face. A layered or CNC-cut cavity in the base holds the panel by its frame so it never loads against the glass. Cheap single-density foam bottoms out under repeated vibration and stops protecting the screen exactly when you need it. For a panel that ships often, foam that holds its shape is not a luxury.

Latches and corners

Recessed butterfly latches sit flush so a conveyor or a neighboring case cannot catch and pop them open in transit. Steel ball corners take a drop on the corner, which is where most freight damage starts, and spread the load into the frame instead of the panel. Spring-loaded handles that fold flat keep the case stackable.

Casters

For anything over about 50 inches, casters turn a two-person carry into a one-person roll across a loading dock. Size them to the loaded weight, and look for a brake on at least two so the case does not wander on an uneven floor. A case that rolls is a case that gets handled less, and less handling means less risk.

Labeling and a repeatable load-out

The case protects the display. Your process protects the schedule. The integrators who ship multi-display installs cleanly treat the case fleet like a system, not a pile of boxes.

• Label by zone, not just by screen. Mark each case with the install zone or wall position so the crew on the far end unloads in build order instead of guessing.
• Pack the same way every time. Same orientation, same accessory pocket, same cable bundle. A repeatable load-out means anyone on the crew can pack or unpack without a briefing.
• Keep mounts and cables with the screen. A documents pouch or a small accessory case riding with each display stops the day-of scramble for a missing bracket.
• Standardize the fleet. When your cases share a size language, they stack predictably on the truck and your team learns one packing pattern, not ten.

Browse the full flat screen case range when you are standardizing, so every size in your fleet comes from the same build family.

When to spec a custom case

Standard size-band cases cover most installs. But AV integration runs into edges that off-the-shelf does not handle, and that is when a built-to-spec case earns its cost. Spec a custom build when:

• The panel is an odd size or an ultra-wide stretched display that no standard band fits.
• You need a multi-screen kit case that carries a full video wall as one matched set.
• The case has to hold the display plus its media player, mount, and cabling in one foam-cut interior.
• You are outfitting a fleet and want every case branded and identical across the company.

Because Gravix manufactures to order, the custom path is not a special favor, it is the normal way to get a case sized to your exact panel with the interior you actually need. The AV integrator's guide to custom transport cases covers how to spec one from the install requirements up.

FAQ

What are flat screen shipping cases?

Flat screen shipping cases are hard, foam-lined ATA cases built to transport flat-panel displays safely. They use a plywood and aluminum shell, steel ball corners, recessed latches, and a foam interior cut to the screen size, so the panel is suspended off every wall of the case and only foam touches the glass during transit.

Can one case ship more than one display?

Yes. Multi-screen or 2-in-1 cases carry two matched displays in a single shell with a divider, which cuts case count and load-out time on video-wall installs. Both panels need to be the same size. For mixed sizes, single-screen cases give each panel its own protection.

Do I need a power-lift case?

A power-lift case is worth it for displays roughly 61 inches and up, or for any crew that loads in and out on a tight schedule. The motorized platform raises the panel out of the case so a two-person team is not deadlifting a heavy display at chest height, which protects both the crew and the screen.

How do I size a case to my display?

Measure the panel's real width, height, depth, and weight, including any fixed feet or rear-mounted hardware, rather than relying on the marketing diagonal. The foam cavity should hug the screen on all four sides with depth to suspend it off the case floor and lid. For mixed sizes, an adjustable case covers a span.

Are these cases rated for freight and air transit?

Gravix builds to the ATA-300 spec, the Air Transport Association standard for cases that survive repeated commercial transit. That covers the stacking, vibration, and rough handling of cross-country freight and air shipping, which is exactly the environment a multi-display install travels through.

When should I order custom instead of standard?

Go custom when the panel is an odd or ultra-wide size, when you need a multi-screen kit case for a full video wall, when the interior must hold the display plus its media player and cabling, or when you are branding a whole fleet. Since Gravix builds to order, a custom quote gets a case sized to your exact panels.
