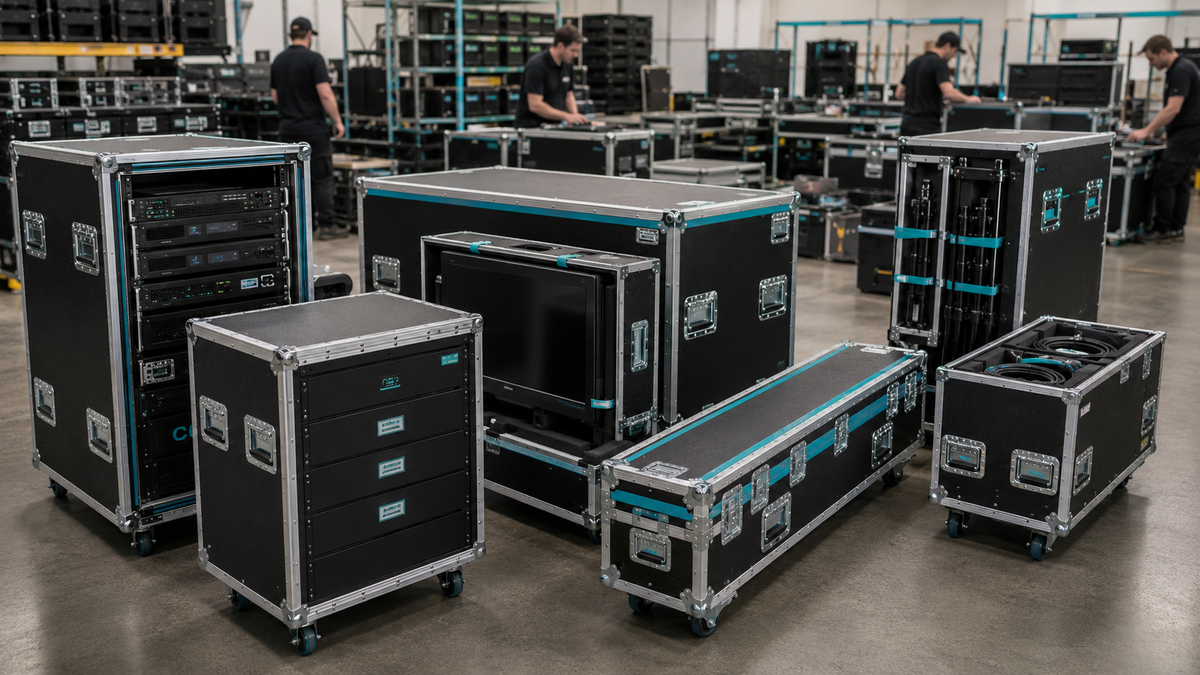

How AV Rental Houses Build a Standardized Case Fleet

Walk into any seasoned rental house and the difference shows up in the warehouse before it shows up on the invoice. A standardized case fleet stacks square, loads in the same order every time, and lets a new tech find the 16U rack without asking. A pile of mismatched cases does the opposite: it eats truck space, slows the load-in, and turns every replacement into a guessing game. This guide walks through how AV rental operations build a fleet that scales without the chaos.

Why standardize a case fleet at all

A rental house lives and dies by turnaround. Gear comes back from one job, gets checked, and goes out on the next, sometimes the same afternoon. Every minute spent matching a mixer to the right case, or shimming a screen into a box that is half an inch too big, is margin you are giving away.

Standardizing attacks that waste on four fronts. Trucks pack tighter when cases share footprints and stack flat, so you fit more gear per run. Crews move faster when every case of a type behaves the same way, latches in the same place, casters at the same height. Damage drops because gear rides in cases sized for it, not whatever was free on the shelf. And replacement becomes a reorder, not a research project, because you already know the spec.

There is a softer benefit too. When a client or venue sees matching cases roll off the truck, branded and labeled, it signals a tight operation, and that impression follows you into the next booking.

Start with a gear audit, not a case order

The most common mistake is buying cases first. You standardize the protection around the gear, so the gear inventory comes first. Pull a full list of what you actually rent out and group it by how it travels.

For each item, write down the dimensions that matter, the weight, and how fragile it is in transit. A flat-screen needs to be measured by diagonal and by depth with the stand removed. A rack-mount unit is measured in rack units (U) plus the depth behind the rails, since a 2U amp in a 12-inch chassis and a 2U power conditioner in a 6-inch chassis do not belong in the same case. Cable, stands, and small accessories get grouped by volume and weight rather than exact shape.

Once the gear is grouped, patterns appear fast. Most inventories land about 80 percent inside a handful of repeatable buckets, which is exactly what makes standardization possible. The oddballs (a one-off processor, a vintage console) stay on a custom track while the bulk of the fleet runs on standards.

The core categories every AV fleet needs

Most AV rental fleets resolve into five or six case families. Standardize inside each family first, then worry about the edge cases. Here is the typical breakdown and the duty level each one usually calls for.

For screens, a set of size-banded flat-screen ATA cases covers most of an AV inventory if you pick a few bands and standardize on a single-screen and a dual-screen option in each. On the audio side, a uniform run of ATA rack cases in two or three U counts and one rail depth keeps your shop racks interchangeable. Round it out with cable equipment trunks on shared footprints so they nest in the truck.

Spec once, buy many: locking your build standard

This is the heart of fleet standardization. For each case family, you decide the build once and then every future order matches it. The variables worth pinning down:

Construction grade. Decide whether a family rides on true ATA-300 construction or a lighter-duty build. ATA-300 is the touring spec: plywood panels, recessed steel ball corners, and recessed latches and handles that survive repeated transit. For gear that ships on every show, it is worth the weight.

Ply thickness. Most road cases use 1/4-inch ply for medium-duty builds and 3/8-inch for heavy-duty. Heavier ply means more crush resistance and more weight. Pick one per family so your stacking math stays consistent.

Foam interior. Convoluted (egg-crate) foam is fine for general cushioning. Layered or CNC-cut foam holds a specific unit in a fixed position, which matters when a tech loads in the dark. Decide which families get cut foam and which get a universal layer.

Hardware and casters. Standardize latch type (recessed twist or butterfly), handle style, and most importantly caster size. If half your cases roll on 3-inch casters and half on 4-inch, your cases sit at different heights and your stacking and ganging fall apart. One caster size per family, ideally one across the fleet.

Write these decisions down as a one-page build sheet per family. That sheet becomes your purchase order language and your warranty reference. Gravix backs its builds with a documented warranty policy, which is worth reading before you commit a fleet to a single spec.

Color-coding, labeling, and asset tracking

A standardized fleet is only as useful as your ability to tell cases apart at speed. Two systems do the heavy lifting here: color and labels.

Color-coding by department or by job is the oldest trick in the trade. Audio rides in one color, video in another, lighting in a third, so a crew can sort a truck by sight before anyone reads a label. Many utility and supply cases ship in a range of shell or panel colors, like this medium-duty supply trunk offered in twelve colors, which makes a color scheme easy to roll out without aftermarket paint.

On top of color, every case should carry a unique asset ID, a barcode or QR label, and a printed contents list. Standardize where that label lives (same panel, same orientation) so a scanner finds it without a hunt. To put your identity on the road, branded panels and stenciled logos turn a generic case into a marketing surface, which is where private label manufacturing comes in, applying your name and colors as the cases are built rather than after.

Standard vs custom in a fleet

Standardization does not mean everything is off the shelf. It means you have a rule for when to use a stock case and when to commission a custom one. The rule is simple: stock for anything that fits a common form factor, custom for anything that does not.

Stock cases win for screens in standard size bands, rack gear in standard U counts, and trunks on common footprints. They arrive faster, reorder easily, and keep the fleet uniform. Custom builds earn their place for non-standard consoles, odd-depth processors, screens at the edge of a band, and any gear valuable enough to justify a CNC-cut foam interior. Own ten of the same processor? Spec one custom case for it and buy that build in quantity so it becomes its own internal standard.

Make the decision on purpose, not by default. Every time you toss a unit into a box that almost fits, you accept damage risk and slower load-ins to save a quote request. For a custom manufacturer, that quote is the equivalent of an add-to-cart, the way you turn an oddball into a repeatable line item.

Buying in volume and rolling it out

Once your build sheets exist, buying the fleet is a volume exercise. Ordering twenty matched rack cases at once almost always beats buying them one at a time on per-unit price, and it guarantees the run is identical (same hardware lot, same foam, same finish). Orders placed months apart drift even with a written spec, because suppliers and small details shift.

For a phased rollout, prioritize the families that move on every show and damage easily, usually screens and racks. Cable and utility trunks can follow, since they are forgiving and easy to standardize later. Plan a small overage of a couple of spare cases per family so a field casualty can be swapped without breaking the set.

Treat the first volume order as the template. The exact spec, quantities, and any private-label details become the standing order you reference for every expansion. When you grow, you are not redesigning the fleet, you are extending it.

Keeping the fleet uniform over time

A fleet drifts if you let it. Casters wear, foam compresses, latches loosen, and well-meaning techs buy a one-off replacement that does not match. Fight drift with three habits.

First, keep build sheets in the purchasing system, not in someone's head, so any reorder pulls the exact spec. Second, stock common wear parts (casters, latches, foam) so a repair restores the standard instead of improvising. Third, set a replacement cycle: heavy-use cases have a service life, and retiring a portion of the fleet each year keeps the set from drifting into a mismatch of old and new.

Done right, a standardized case fleet is a quiet competitive edge. The cases stack, the crews move, the gear survives, and your name rolls in on the side of every box. The work is mostly upfront: audit the gear, lock the specs, buy the volume, then protect the standard as you grow.

Frequently asked questions

What does it mean to standardize a case fleet?

It means committing every case in a gear category to one locked build: the same construction grade, ply thickness, foam, hardware, caster size, and color system. Instead of a warehouse of mismatched boxes, you have repeatable case families that stack the same, pack the same, and reorder the same. The result is faster load-ins, tighter trucks, and predictable replacements.

How many case types does an AV rental house actually need?

Most AV fleets resolve into five or six families: flat-screen and monitor cases, rack cases, cable and power trunks, utility and supply trunks, and stand or rigging cases. Standardize inside each family first by choosing a small set of sizes and one build spec. The handful of true oddballs can run on a separate custom track without breaking the system.

Should rental cases be standard or custom built?

Use stock cases for anything that fits a common form factor: screens in standard size bands, rack gear in standard U counts, trunks on shared footprints. Use custom builds for non-standard consoles, odd-depth units, and high-value gear that justifies a CNC-cut foam interior. When you own several of the same odd item, commission a custom spec and buy it in quantity so it becomes its own standard.

Does buying road cases in bulk lower the price?

Yes. Ordering a family of cases in one volume run typically lowers the per-unit cost compared with buying them individually over time, and it guarantees the cases are truly identical because they come from the same production lot. Bulk pricing is built for exactly this, and it pairs well with private-label branding applied during manufacturing rather than after.

How do you keep a case fleet consistent as it grows?

Store a one-page build sheet per case family in your purchasing system so every reorder pulls the exact spec. Stock common wear parts like casters, latches, and foam so repairs restore the standard instead of improvising. Set a replacement cycle to retire heavily used cases on a schedule, which stops the fleet from drifting into a mix of old and new builds.
